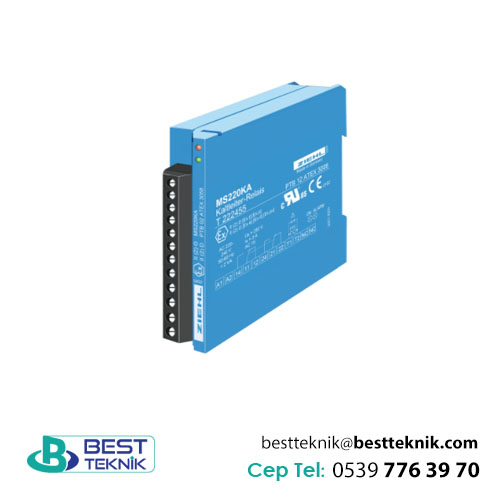

ZIEHL PTC-Röle MSF220K
Anma besleme gerilimi Us
AC 220-240 V ±% 10, 50/60 Hz, ≤ 2 VA
AC / DC 24-240 V, AC19 – 264 V, DC 20-297 V <3 VA,
Bağlanabilir PTC dirençleri
DIN VDE V 0898-1-401’e göre 2 x 1 … 6 PTC (eski DIN 44081/82)
Anahtarlama noktası
<4000 Ω
Çıkış rölesi
1 kontak değiştirme (co), 1 normalde açık kontak (hayır)
İletişim türü
Tip 2
Test koşulları
Anma ortam sıcaklığı
-20 … + 55 ° C
Boyutlar yxgxd
Tasarım K: 75 x 22,5 x 115 [mm]
Ek dosya
EN 60 715’e göre 35 mm DIN rayı veya vidalar M4 (seçenek) üzerinde
Koruma Muhafazası / Terminalleri
IP30 / IP20
Ağırlık
yakl. 110 g
- Açıklama
- İnceleme (0)
- Genel Bilgi
Açıklama
Product description
PTC-relay for the monitoring of dry transformers. Alarm 1 with relay in closedcircuit current mode for preliminary warning, releases at over-temperature at PTC-set 1 and serves at the same time as functional monitoring. Alarm 2 in operating current mode. Thus no wiping signal occurs when switching on the supply voltage on. Additional terminals enable comfortable wiring from supply voltage to relays K1 and/or K2.
Changes from T221715 / T221716 to T221717 / T221718 (cURus, monitoring of sensors for short circuit an interrupt activatable, improved test function)
Functions
- 2 PTC resistor sets
- 2 output relays 1 change-over contact (co)/ 1 normally open contact (no)
- monitoring of sensors for short-circuit and break activatable
- TEST-button (delayed)
- LEDs for ON, alarm 1 and 2
- red LEDs for alarm 1 and alarm 2
- K-type housing
- Housing for mounting on DIN-rail 35 mm or wall-mount with screws M4
- alternative to foreign product type TS-01
