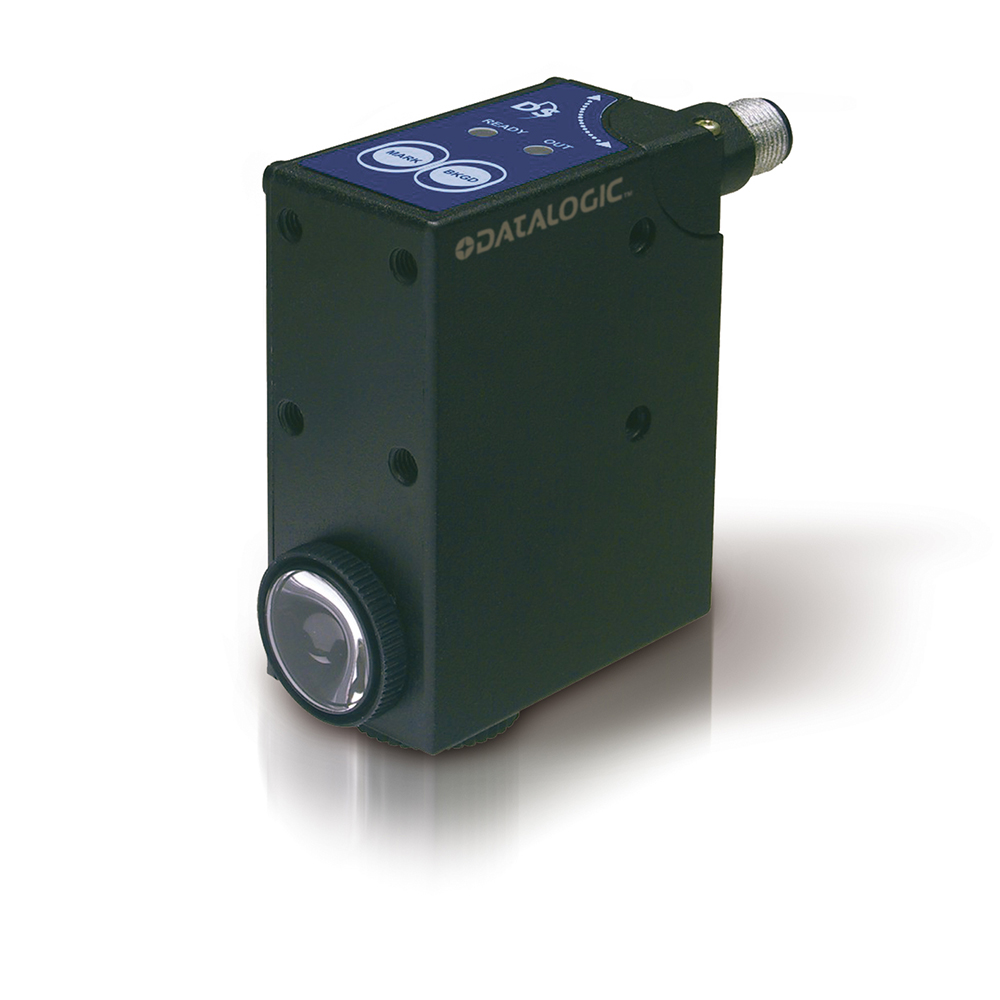

Overview
- Teach-in, Remote settings
- Red/green or white LED emission
- Various interchangeable lenses and fiber-optic models
- Metal housing with orientable optics and connector
Technical Features
Detection properties
| Nominal sensing distance | 9mm |
| Spot dimension | Ø 3 mm |
| Sensitivity adjustment | Teach-in |
Application
| Function Principle | Contrast mark detection |
| Description | Standard case – circular spot |
| Optic position | axial |
| Functions | Contrast mark detection |
Outputs
| Output type | PNP L/D selectable |
| Output Function | L/D selectable |
| Response time | 0,025 (20 kHz) |
Electrical data
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 80mA |
| Output voltage drop | ≤2V |
| LED indicators | red OUTPUT greenREADY |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | LED White |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
Mechanical data
| Dimensions | 31x58x82 |
| Material | |
| Housing material | Metal – Zamak |
| Connections | 2m cable |
| Active Head Material | Glass |
| Storage temperature | – 20°C…+70°C |
| Diameter/Dimension | Cubic |
Test/Approvals
| Approvals | CE cULus |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
Generical Data
| Dimensions | 31x58x82 |
| Operating Temperature | -10°C … 55°C |
| Mechanical Protection | IP67 |
