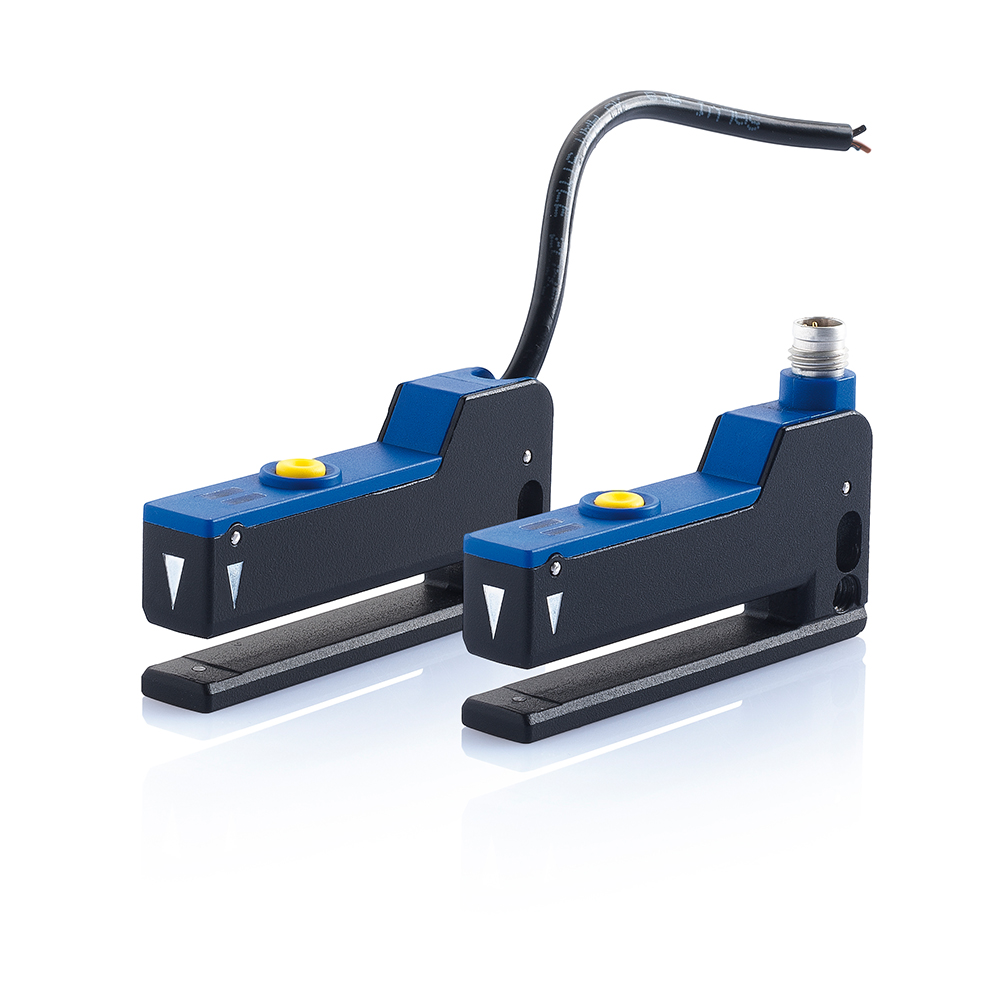

Overview
- Multilayer labels detection
- Up to 0,5 mm of minimum size labels/gap
- 5 mm slot width
- 50 mm slot depth
- Dynamic or static setting through single push-button
- 12 kHz switching frequency
- Compact and robust housing, IP65
- M8 connector or 2 m cable models
- PNP or NPN models
Technical Features
Detection properties
| Nominal sensing distance | 5mm |
| minimum detectable object | 0,5mm |
| Sensitivity adjustment | Teach-in |
Application
| Function Principle | Fork for label detection |
| Description | Slim case – fork slot 5×50 mm |
| Functions | Fork for label detection |
Outputs
| Output type | PNP Don |
| Output Function | Don |
| Switching frequency | 12kHz |
| Response time | 40 µs |
Electrical data
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 30mA |
| Output voltage drop | ≤2V |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
Mechanical data
| Dimensions | 11x25x64 |
| Material | |
| Housing material | Metal – Zamak / PBT |
| Connections | 2m cable |
| Active Head Material | PMMA |
| Storage temperature | – 20°C…+70°C |
| Depth slot detection | 50,5mm |
Test/Approvals
| Approvals | CE cULus |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
Generical Data
| Dimensions | 11x25x64 |
| Operating Temperature | – 20°C…+ 55°C |
| Mechanical Protection | IP65 |
