Overview

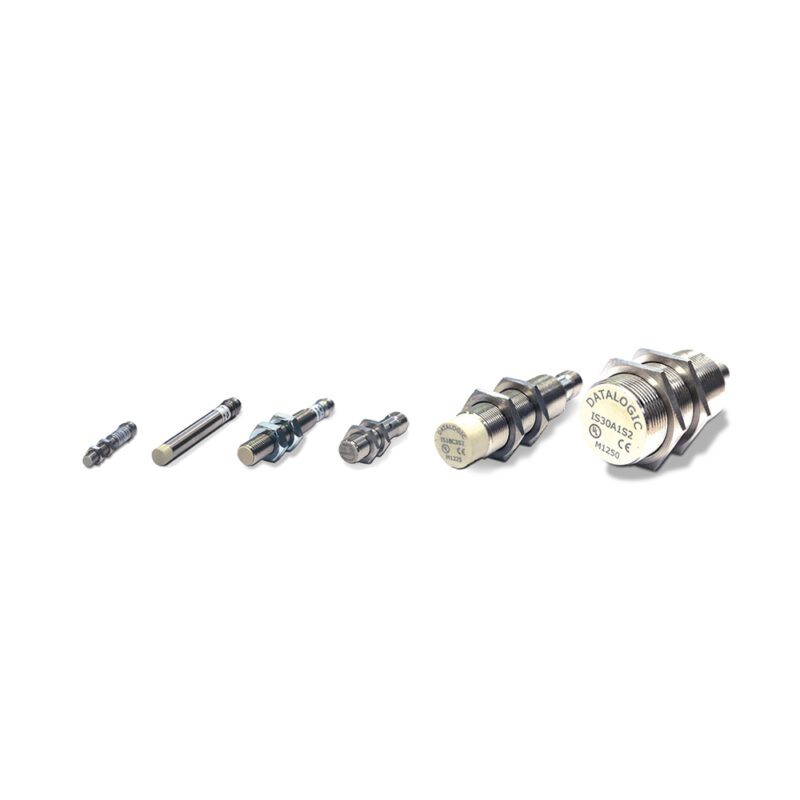

- Standard proximity M4, M5, M8, M12, M18, M30
- Double range (i.e. M12 4mm, M18 14mm, M30
- Unshielded or shielded models for flush mounting
- Nickel brass or stainless steel short and long
- Ecolab and Diversey certifications for industrial
- Multi-voltage, Metal face, Weld field immune models
- NO/NC, NPN or PNP output and programmable
20mm)
housing
detergents
versions.
Technical Features
Detection properties
| Nominal sensing distance | 5mm |
| Operanting distance | 0…4,05mm |
| Standard target | 18x18mm FE360 |
| Correction Factor | copper: 0,4 / aluminium: 0,45 / brass: 0,5 / stainelss steel: 0,85 |
| Repeat Accuracy | < 1% (UB 24V Ta=23°C ±5°C) |
| Hysteresis | < 15% |
Application

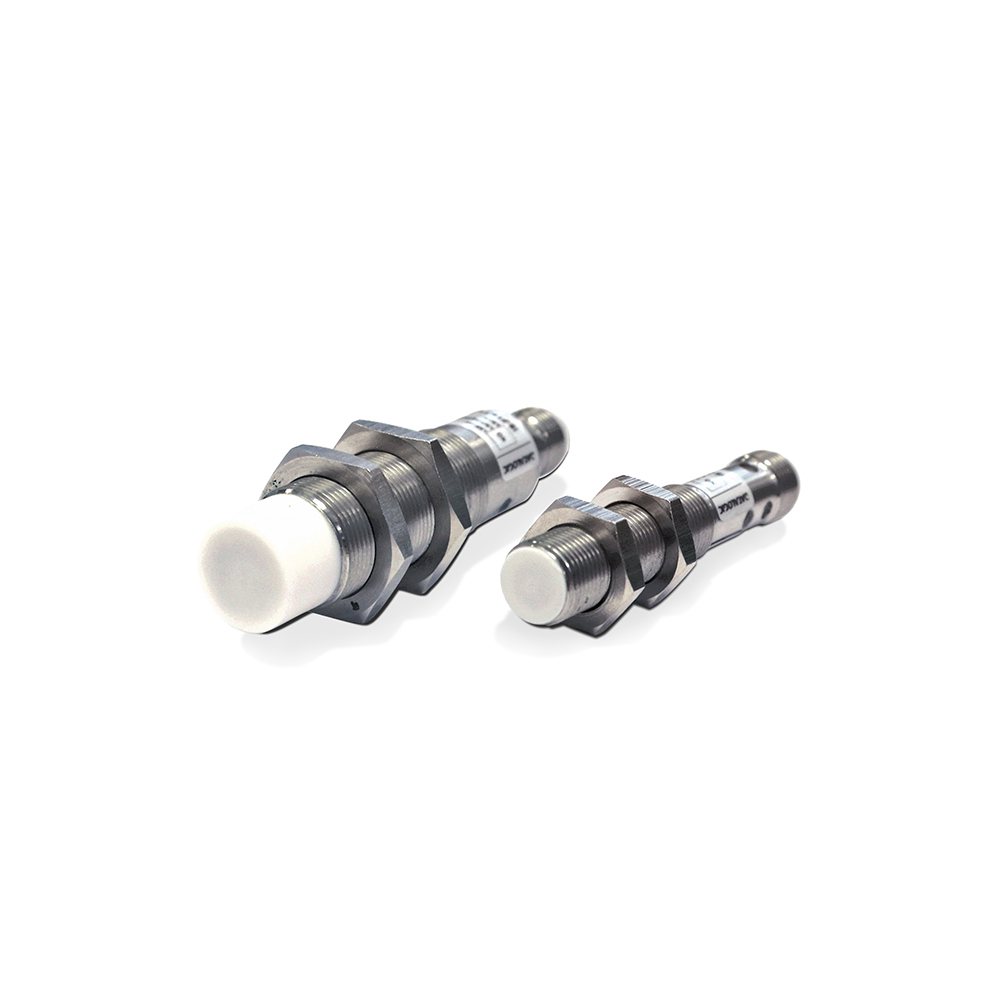

| Description | M18 weld field immune flush mount |
| Functions | Proximity |
Outputs
| Output type | PNP |
| Output Function | NO |
| Switching frequency | 1kHz |
| Response time | 0,5 |
Electrical data
| Operating Voltage | 10…30Vdc |
| No-Load supply current | ≤ 10mA |
| Load current | 200mA |
| Output voltage drop | ≤ 1,5V @100mA |
| Max ripple content | ≤ 10% |
| LED indicators | Yellow LED output state |
| Time delay before availability | < 0,1ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | ≥100kHz |
| Protection against inductive loads | Yes |
Mechanical data
| Dimensions | Ø18×73 |
| Mounting | Shielded |
| Material | Stainless steel |
| Housing material | Stainless steel |
| Connections | M12 Plug |
| Active Head Material | PTFE |
| Diameter/Dimension | M18 |
Test/Approvals
| Approvals | CE |
Generical Data
| Dimensions | Ø18 / L = 73mm |
| Operating Temperature | -25°C…+70°C |
| Mechanical Protection | IP67 |
