Overview

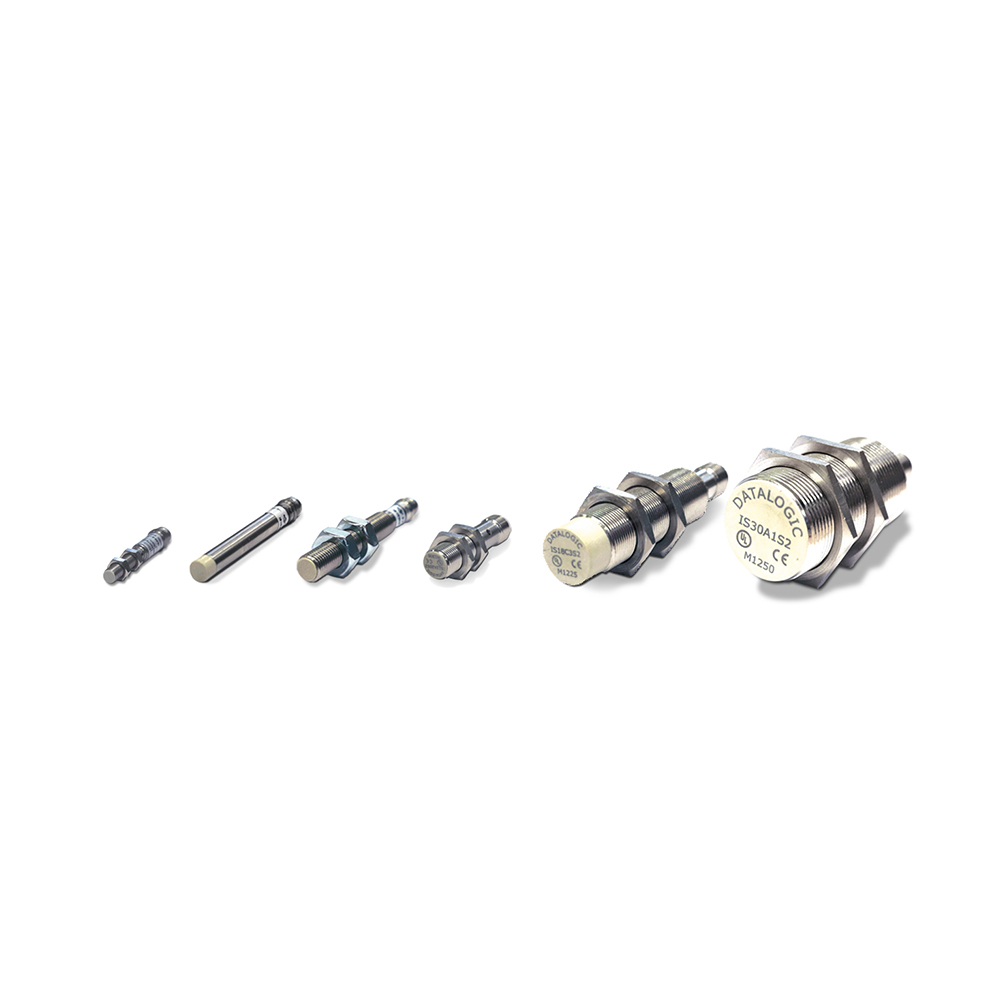

- Standard proximity M4, M5, M8, M12, M18, M30
- Double range (i.e. M12 4mm, M18 14mm, M30
- Unshielded or shielded models for flush mounting
- Nickel brass or stainless steel short and long
- Ecolab and Diversey certifications for industrial
- Multi-voltage, Metal face, Weld field immune models
- NO/NC, NPN or PNP output and programmable
20mm)
housing
detergents
versions.
Technical Features
Detection properties
| Nominal sensing distance | 15mm |
| Operanting distance | 0…12,1mm |
| Standard target | 45x45mm FE360 |
| Correction Factor | copper: 0,4…0,5 / aluminium: 0,4…0,6 / brass: 0,5…0,7 / stainelss steel: 0,7…1,05 |
| Repeat Accuracy | < 3% (UB 24V Ta=23°C ±5°C) |
| Hysteresis | < 10% |
Application
| Description | M30 NAMUR no-flush mount |
| Functions | Proximity |
Outputs
| Output type | NAMUR |
| Output Function | NAMUR |
| Switching frequency | 500Hz |
| Response time | 1 |
Electrical data
| Operating Voltage | 7.7…9Vdc |
| No-Load supply current | < 1mA (target absent) |
| Load current | < 3mA (target present) |
| Max ripple content | ≤ 10% |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | ≥100kHz |
| Protection against inductive loads | Yes |
Mechanical data
| Dimensions | Ø30×85 |
| Mounting | Unshielded |
| Material | Nickel-plated brass |
| Housing material | Nickel-plated brass |
| Connections | M12 Plug |
| Active Head Material | LCP |
| Tightening torque | 40Nm |
| Diameter/Dimension | M30 |
Test/Approvals
| Approvals | CE cULus II 3G EX nA II T6 II 3D EX tD A22 IP67 T85°C |
Accessories
| Supplied Accessories | 2 nuts M30x1.5 |
Generical Data
| Dimensions | Ø30 / L = 85mm |
| Operating Temperature | -25°C…+60°C |
| Mechanical Protection | IP67 |
