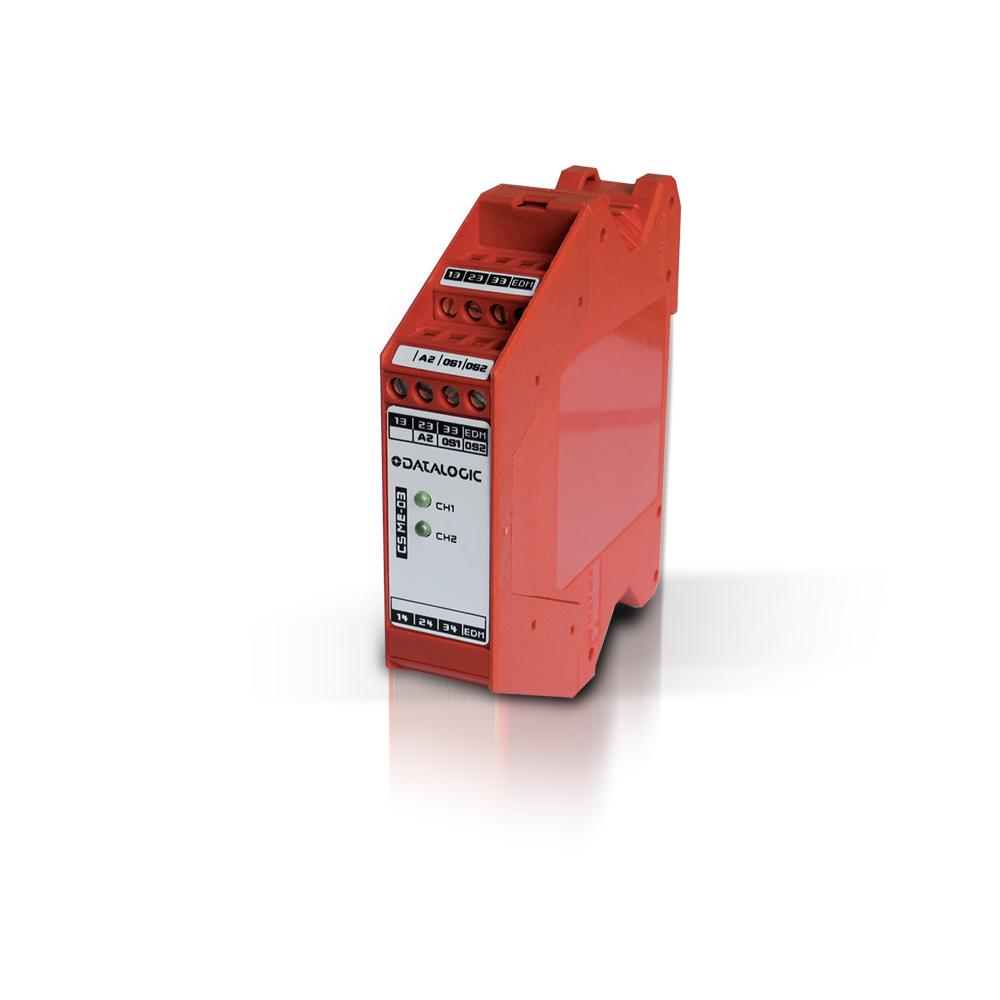

Overview
- Module for solid-state output circuits (optical barriers type 2 and 4)
- 2 OSSD inputs
- Up to safety category 4 (EN ISO 13849-1), SIL 3 (EN 62061), PL e (EN ISO 13849-1)
- Supply voltage 24 Vdc
- Output contacts: 3 NO safety contacts and 1 NC feedback/EDM contact
- LED indicating the switching state of the channels 1 and 2
- Small 22,5 mm housing with snap montage on DIN-rail
Technical Features
Detection properties
| Nominal sensing distance | n/a |
| controlled height | n/a |
| Sensitivity adjustment | n/a |
Application
| Description | DIN-rail mount case |
| Functions | Forcibly guided relay interface |
Safety parameters
| Type | Safety accessory |
Outputs
| Output type | Relay 3NO + 1NC |
| Response time | 20,0 |
Electrical data
| Operating Voltage | 24 VDC |
| Emission | n/a |
Mechanical data
| Dimensions | 91x99x22.5 |
| Material | Plastic |
| Connections | Terminal block |
Generical Data
| Dimensions | 91x99x22.5 |
