Overview
- Installation Flexibility
- Long distance
- Low temperature with defogging function
- 4 safety areas controlled with one unit
- Double muting
- Emitter-receiver photocells with test input
- Type 2 and Type 4 models
- Plastic tubular and MAXI formats
- Up to 50m operating distance
- Class 1 red laser emission models up to 40
- Standard M12 connectors
- Integrated control of 4 single beams and 2 light curtains
- Simple DIP Swicth configuration
- Muting functions can be assigned to light curtains or single beams
SENSORS
CONTROL UNITS:
Technical Features
Detection properties
| Nominal sensing distance | 0 … 8 m |
| Resolution | Single-beam |
| controlled height | Single-beam |
| Sensitivity adjustment | n/a |
| Effective Aperture Angle | ≤ ±5° |
Application
| Function Principle | Emitter |
| Control unit to be used | SG-BWS-T4 Series |

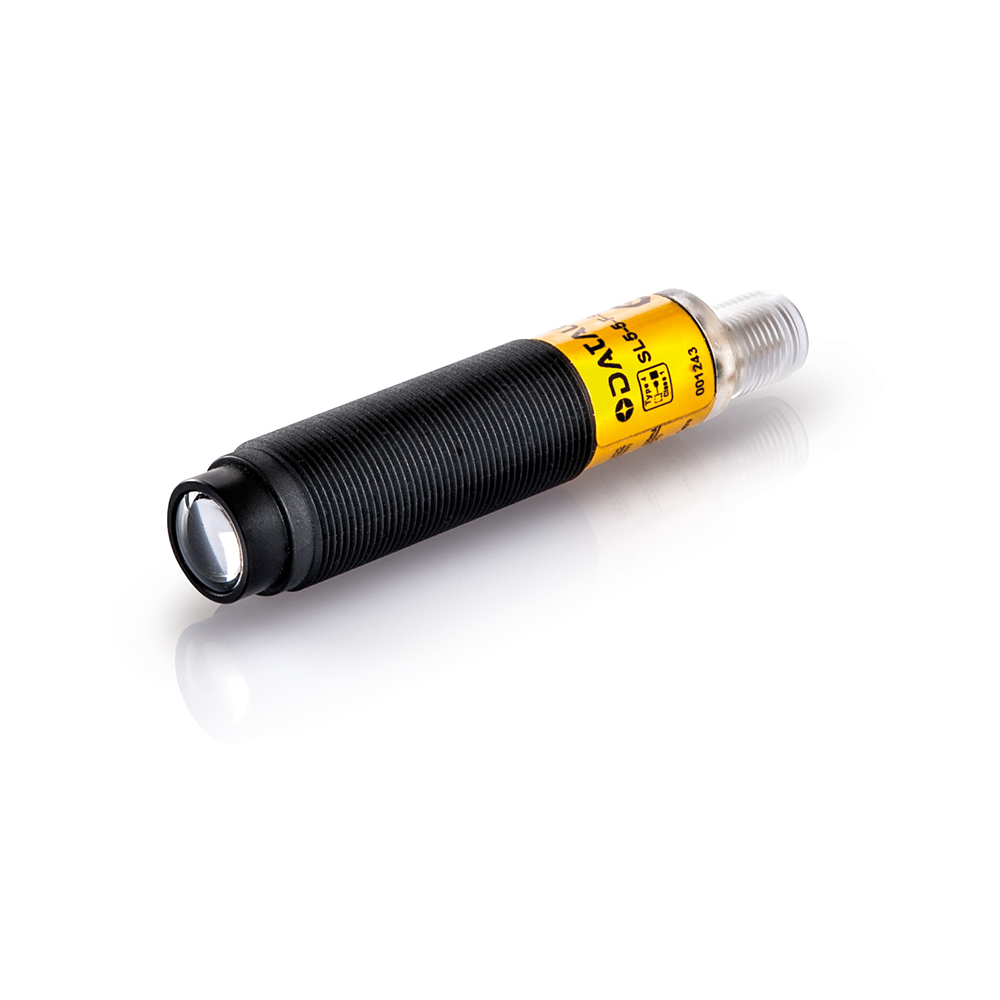

| Description | M18 Type 4 Safety Photocell Emitter |
| Functions | Emitter for SG-BWS-T4 |
Safety parameters
| Type | Type 2 safety photocell |
| PL | n/a |
Outputs
| Output type | n/a |
| Response time | n/a |
Electrical data
| Operating Voltage | 24 Vdc ±15% |
| No-Load supply current | ≤ 30mA |
| Load current | ≤ 100mA |
| Output voltage drop | |
| LED indicators | Green (POWER ON) |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
Mechanical data
| Dimensions | Ø18×67 |
| Material | |
| Housing material | Plastic – PBT / PMMA |
| Connections | M12 plug |
| Active Head Material | PMMA |
| Storage temperature | -25…+70°C |
| Diameter/Dimension | |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
Test/Approvals
| Approvals | CE, cULus |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
Accessories
| Supplied Accessories | 2 x nuts |
Generical Data
| Dimensions | M18 |
| Operating Temperature | – 25…+55°C (Without freeze) |
| Mechanical Protection | IP67 |
UNASSIGNED
| Disegno 2D PDF | n/a |
