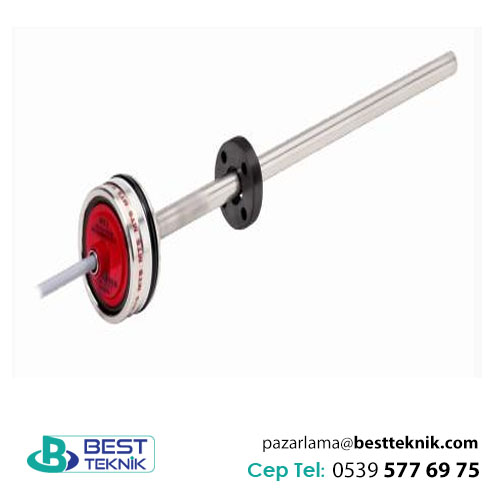

The new generation of high performance rod-style sensors for demanding in-cylinder applications
- Backward compatible
- Increased operating temperature up to +85 °C (+185 °F)
- Increased shock & vibration resistance
- Improved performance with high accuracy & reliability
- Multi-position measurement with up to 30 magnets
- Outputs: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
- Output of additional status information of the position sensor via the TempoLink smart assistant
| PROFINET | 25…7620 mm (1…300 in.) | 0.5 µm | Up to 30 positions | Active |
| EtherNet/IP™ | 25…7620 mm (1…300 in.) | 1 µm | Up to 20 positions | Active |
| SSI | 25…7620 mm (1…300 in.) | 0.1 µm | – | Active |
| POWERLINK | 25…7620 mm (1…300 in.) | 0.5 µm | Up to 30 positions | Active |
| EtherCAT® | 25…7620 mm (1…300 in.) | 0.5 µm | Up to 30 positions | Active |
| Analog | 25…7620 mm (1…300 in.) | 16 bit | Up to 2 positions | Active |
