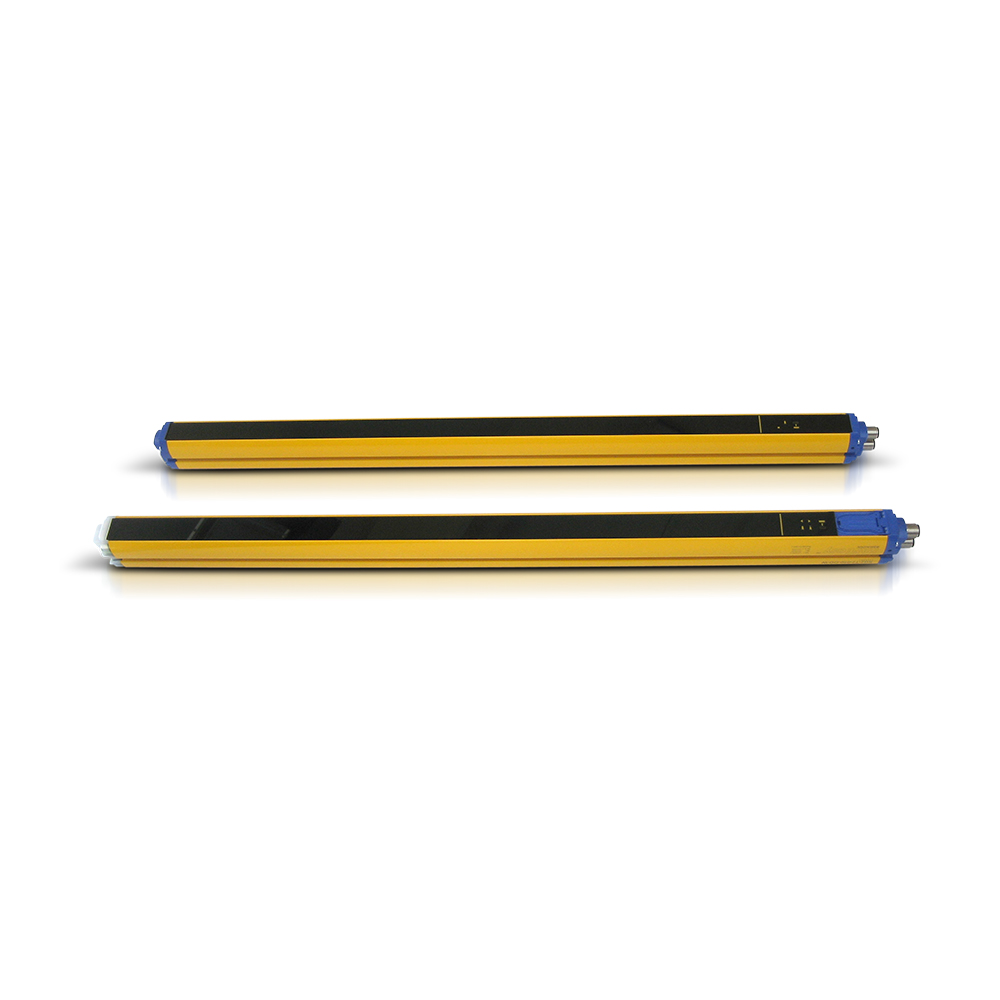

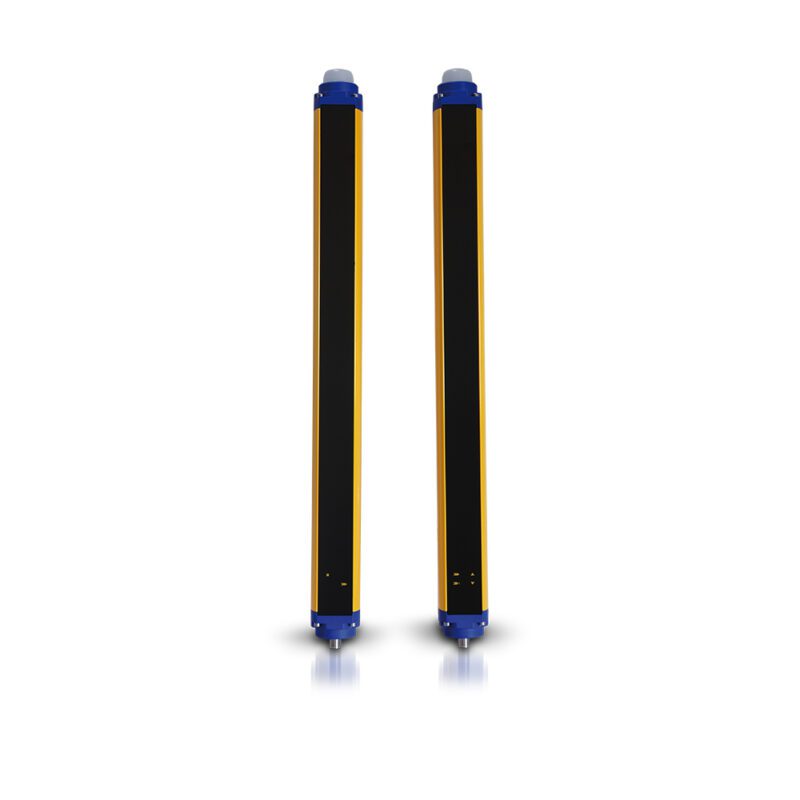

Overview
- Body access detection
- Perimeter control
- Rapid solution for access control with muting
- Easy installation and alignment
- L and T muting models provided with Retroreflective Muting Arms
- Two, three or four beams for body protection
- Controlled heights of 500, 800, 900 and 1200 mm
- Long operating distance: up to 50 m
- Simple configuration through DIP switches
- Integrated muting lamp (only on muting models)
Technical Features
Detection properties
| Nominal sensing distance | 0,5 … 50 m |
| Resolution | 400mm |
| controlled height | 1200 mm |
| number of rays | 4 |
| Sensitivity adjustment | Dip-switch |
| Effective Aperture Angle | ≤ ±2,5° |
Application
| Function Principle | Emitter + Receiver |
| Available functions | Manual/Automatic Restart, EDM, L/T Muting, Override |
| Description | Compact standard |
| Functions | Body protection 4 beams muting |
Safety parameters
| Type | Type 4 safety light curtain (A/M) |
| SIL | 3 |
| SILCL | 3 |
| PL | e |
| MTTFd | 384 years |
| Dcavg | 98,90% |
| SFF | 99.38% |
Outputs
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 16 ms |
Electrical data
| Operating Voltage | 24 Vdc ± 20% |
| Load current | ≤ 500mA each output |
| Emission | Infrared LED (880 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption – Receiver | ≤ 2,2W (no load) |
| Power Consumption – Emitter | ≤ 0,9W |
| Equivalent Resistive Load | ≥ 56Ω |
| Capacitive Load | ≤ 65nF |
| Cabel Length (Power Supply/Output) | ≤ 50m |
Mechanical data
| Dimensions | 35x41x1363 |
| Material | Painted aluminum / PMMA / PC Lexan 943A |
| Connections | M12-4 poles + M12-5 poles (emitter) M12-8 poles + M12-5 poles (receiver) |
| Storage temperature | -25…+ 70°C |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
Test/Approvals
| Approvals | CE, cULus, TÜV |
| EMC compatibility | According to 2014/30/EU Directive |
Accessories
| Supplied Accessories | Standard “L” Mounting Brackets: 6 pcs kit |
Generical Data
| Dimensions | 35×41,2×1364 mm |
| Operating Temperature | 0…+55°C |
| Humidity | 15 … 95 % (no condensation) |
| Mechanical Protection | IP65 |
