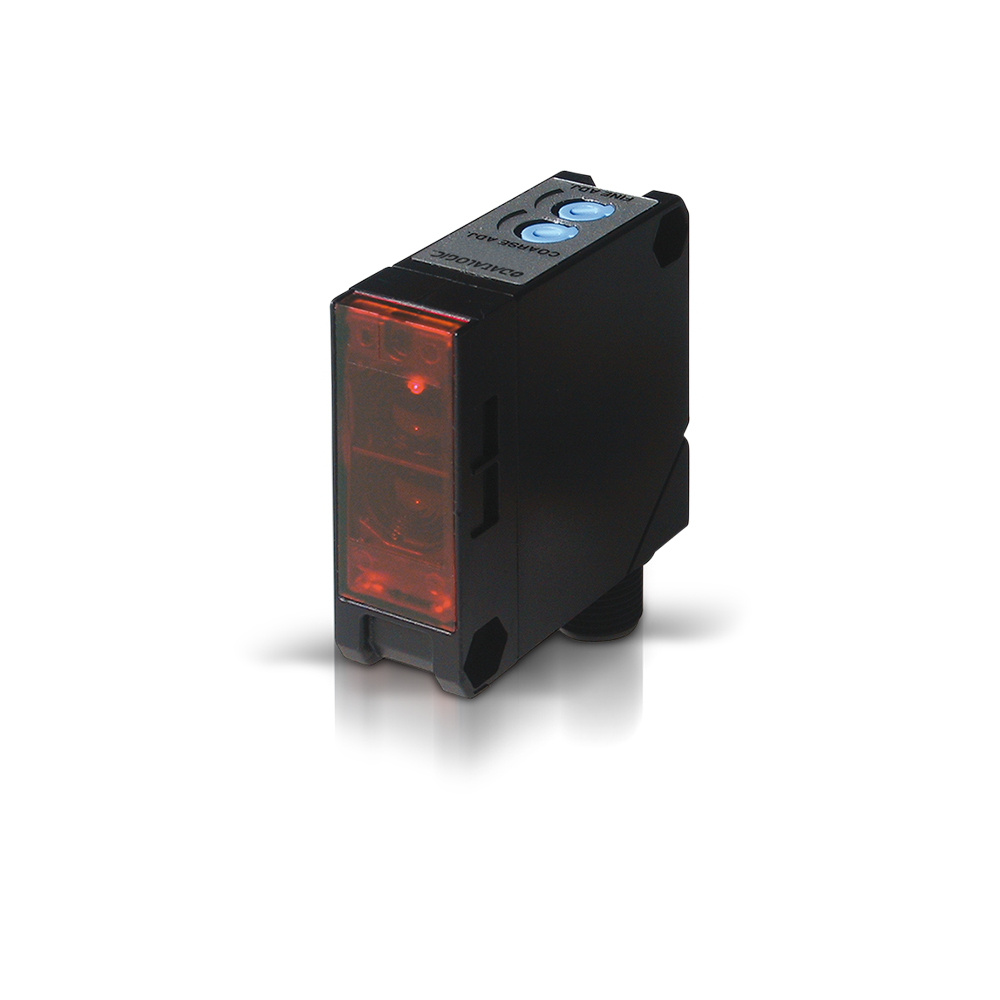

Overview
- 50×50 mm compact dimensions
- Free voltage Vac/Vdc models with relay output
- 10-30 Vdc model with transistor output
- Standard cable or M12 4-pole connection
Technical Features
Detection properties
| Nominal sensing distance | 20m |
| Sensitivity adjustment | n/a |
Application
| Function Principle | Through beam emitter |
| Description | Compact square case |
| Functions | Through beam emitter |
Outputs
| Output type | n/a |
| Switching frequency | 250Hz |
| Response time | n/a |
Electrical data
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| LED indicators | Red (powerON) |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
Mechanical data
| Dimensions | 18x50x50 |
| Material | |
| Housing material | ABS |
| Connections | M12 plug |
| Active Head Material | PMMA |
| Storage temperature | – 25°C…+70°C |
| Diameter/Dimension | Cubic |
Test/Approvals
| Approvals | CE cULus |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
Generical Data
| Dimensions | 18x50x50 |
| Operating Temperature | – 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP65 |
