Overview
- Color S65-V:
- 3 independent NPN or PNP outputs and RS 485 serial interface
- 3 channel color sensor with 10 tolerance levels
- Wide spectrum white light LED emission and RGB photo-receiver
- 2 push button setting with 4 digit display indicator
- High 12 bit resolution and 30 kHz switching frequency
- PNP or NPN output and RS 485 serial interface

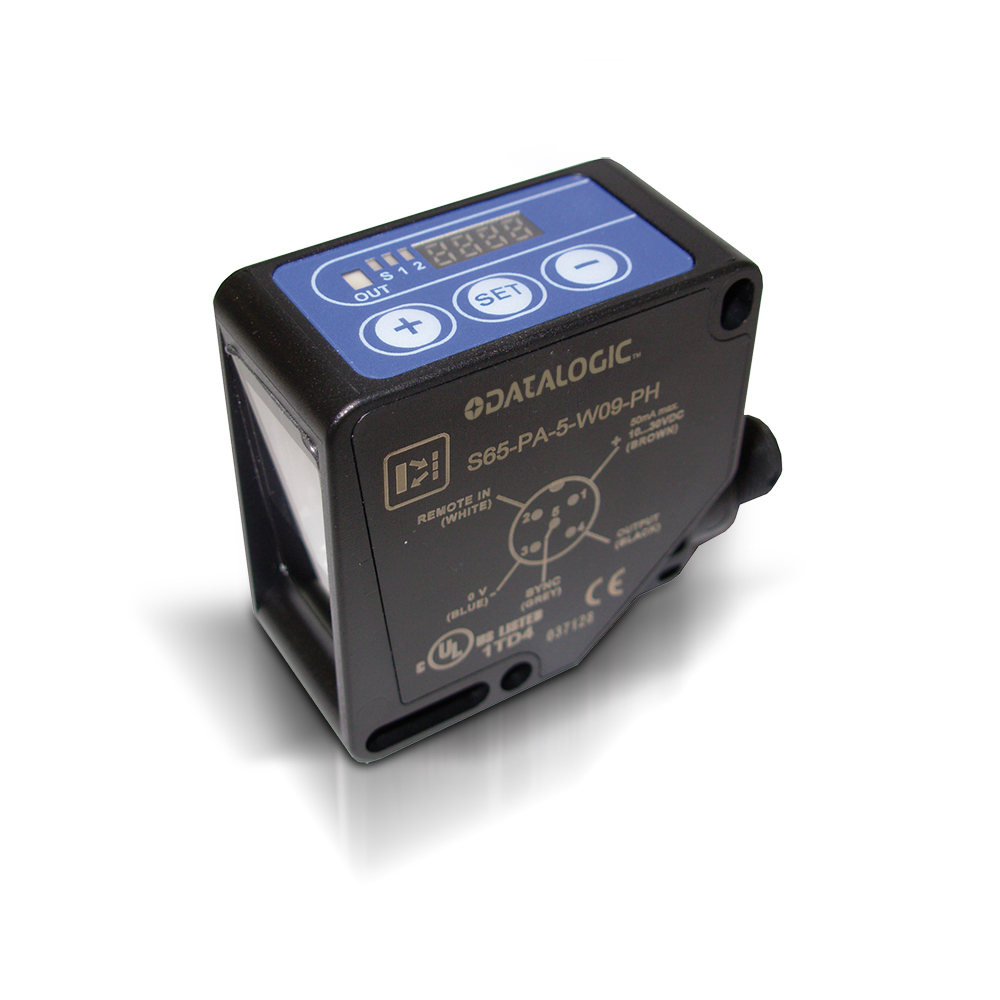

Contrast S65-W:
Technical Features
Detection properties
| Nominal sensing distance | 20mm |
| Spot dimension | 3×1 mm at 19 mm |
| Sensitivity adjustment | Teach-in |
Application
| Function Principle | Contrast mark detection |
| Description | Compact square case |
| Optic position | Radial 90° |
| Functions | Contrast mark detection |
Outputs
| Output type | NPN L/D Selectable |
| Output Function | L/D Selectable |
| Switching frequency | 30 kHz |
| Response time | 0,017 (30kHz) |
Electrical data
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 50mA |
| Load current | ≤100mA |
| Output voltage drop | ≤ 2VDC |
| LED indicators | Yellow (output state) STABILITY and 2 OUTPUT DELAY LEDs |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | LED white |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
Mechanical data
| Dimensions | 25x50x50 |
| Material | |
| Housing material | Plastic – ABS / PMMA |
| Connections | M12 plug |
| Active Head Material | PMMA |
| Storage temperature | – 20°C…+70°C |
| Diameter/Dimension | Cubic |
Test/Approvals
| Approvals | CE cULus |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
Generical Data
| Dimensions | 25x50x50 |
| Operating Temperature | – 10°C…+ 55°C |
| Mechanical Protection | IP67 |
