Overview
- Wide versatility of optic functions and
- High operating distances for all
- Models with trimmer adjustment and
- Rugged and impermeable plastic
connections
functions
stability LED
housing
Technical Features
Detection properties
| Nominal sensing distance | 600mm |
| Sensitivity adjustment | Trimmer |
Application
| Function Principle | Diffuse beam |

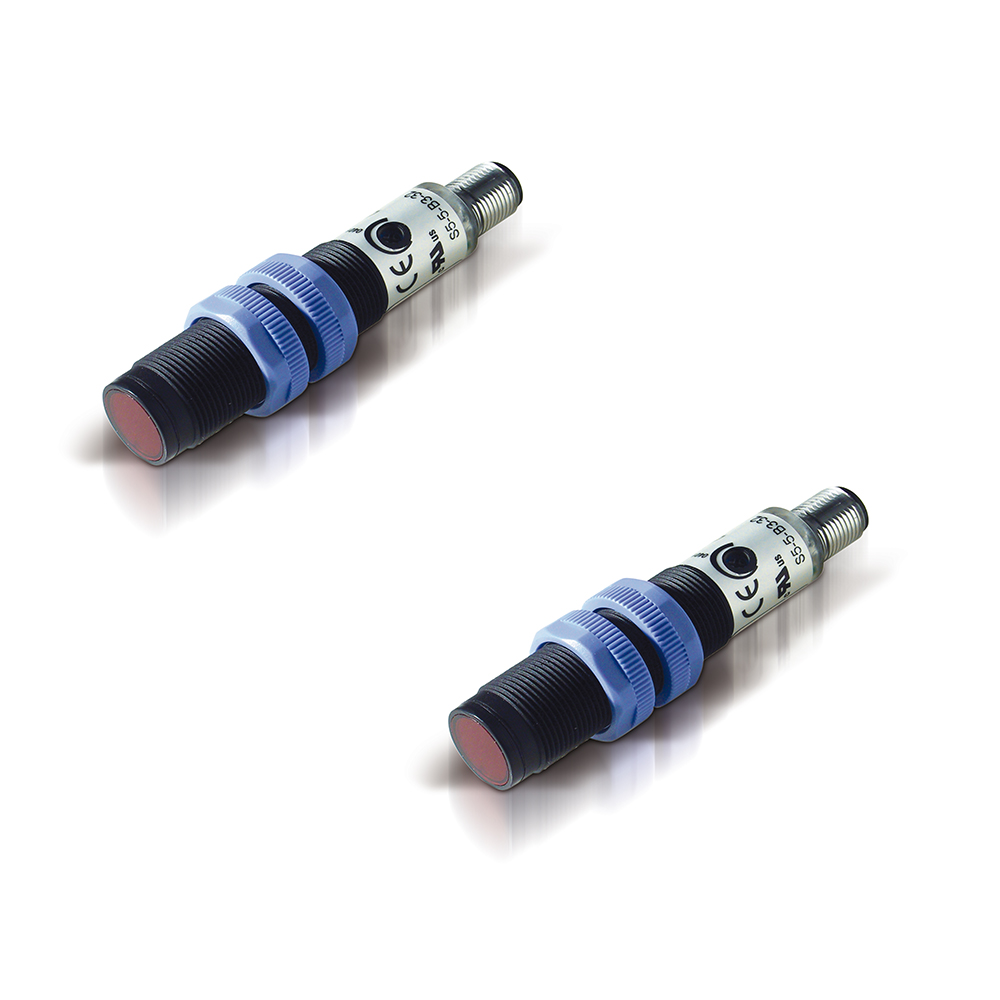

| Description | Tubular M18 – axial optic |
| Functions | Diffuse beam |
Outputs
| Output type | NPN/PNP – Dark/Light sel. L/D |
| Output Function | L/D |
| Response time | 1 |
Electrical data
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| Output voltage drop | ≤2,5V@Iload=100mA |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
Mechanical data
| Dimensions | Ø18×77 |
| Material | |
| Housing material | Plastic – PBT / PMMA |
| Connections | 2m cable |
| Active Head Material | PMMA |
| Storage temperature | – 25°C…+70°C |
| Diameter/Dimension | M18 |
Test/Approvals
| Approvals | CE cULus |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
Accessories
| Supplied Accessories | nuts M18 x 1 |
Generical Data
| Dimensions | M18 x 1 /L=77 |
| Operating Temperature | – 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP67 |
