Overview
- All models with visible and bright red emission
- LED and Laser emission models
- Multiple Background suppression functions
- Shiny and clear object detection
- Single, Double trimmer & Push Button models
- Diffuse proximity up to 100 cm
- Background suppression up to 800 mm (LED trimmer version)
- Polarized RRX 7 m (Red LED emission)
- Polarized RRX 12 m (Red Laser emission)
- Through-beam 20 m and Laser 30 m

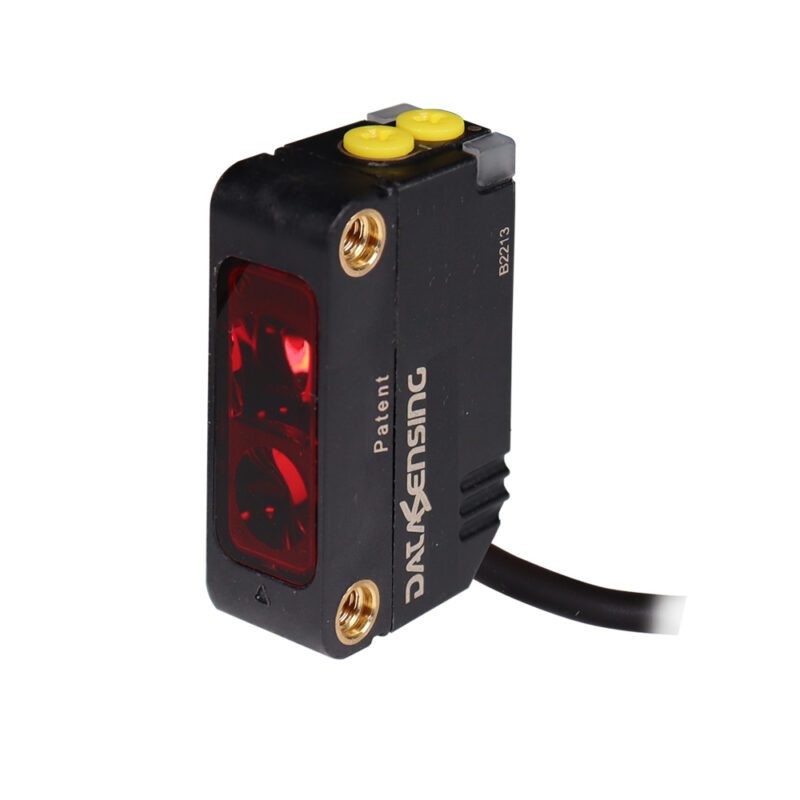

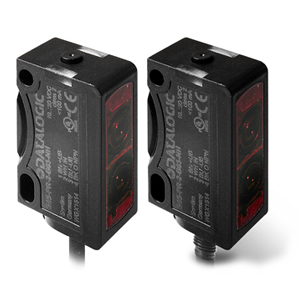

- Connection with 2 m Cable or M8 connector
- Rugged IP67 Plastic miniature case
- M3 threaded holes on the front side with metal inserts
- State of the art IO-Link connectivity with extended Smart Tasks
Technical Features
Detection properties
| Nominal sensing distance | 12m |
| Sensitivity adjustment | 1 turn trimmer |
| Minimum sensing distance (blind zone) | 0,1m |
Application
| Function Principle | Polarized retroreflective |
| Notes | On R7 reflector (class 1 LASER) |
| Optic position | Radial 90° |
| Functions | Polarized retroreflective |
Outputs
| Output type | PNP L/D selectable by trimmer L/D Selectable |
| Output Function | L/D Selectable |
| Switching frequency | 2kHz |
Electrical data
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 35mA |
| Load current | ≤100mA |
| Leakage current | ≤ 300 μA |
| Output voltage drop | ≤2V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | yellow OUTPUT LED, green POWER ON LED |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LASER Red (650nm) class1 |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| 0,1µF @Vmax – 1µF @Vmin | Yes |
Mechanical data
| Housing material | Plastic Polymer Fiber Glass reinforced |

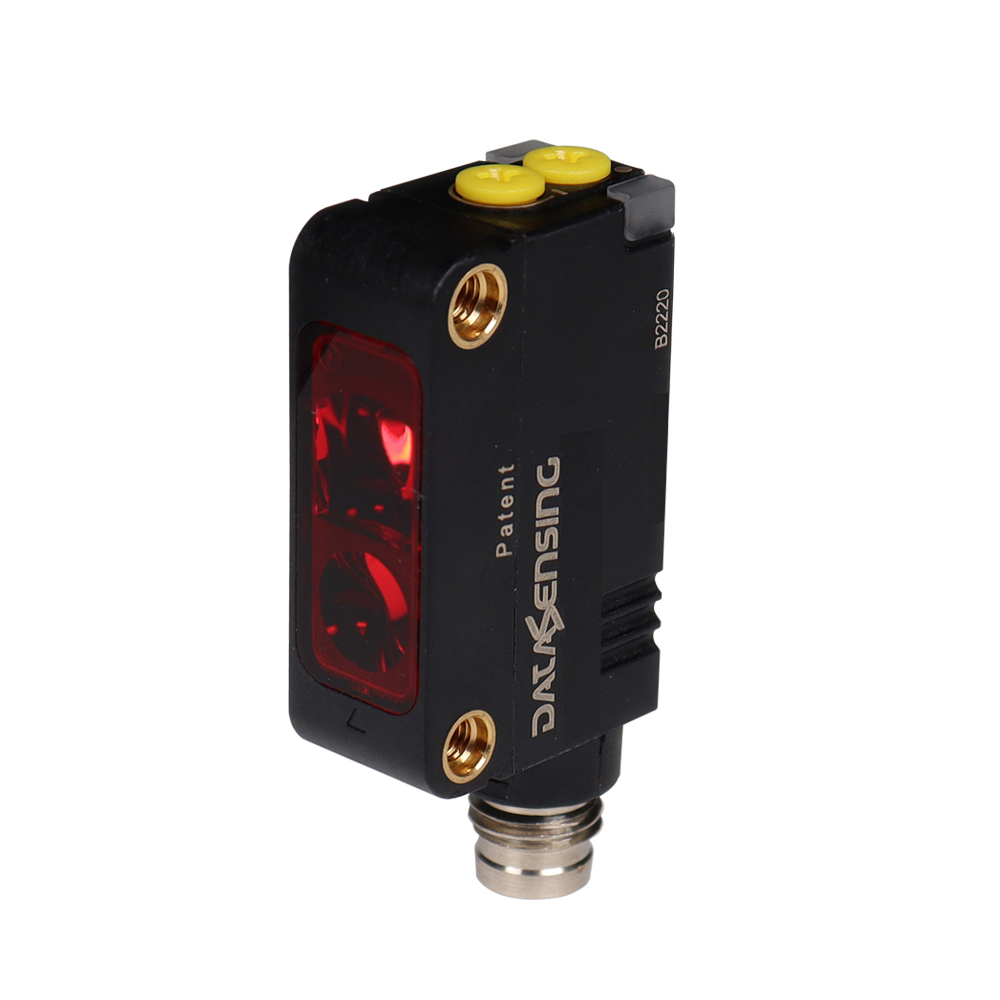

| Connections | M8 plug 4pin |
| Active Head Material | PMMA |
| Storage temperature | – 25°C…+70°C |
| Plug connector material | Metal |
| shaft material | POM, PMMA |
| Diameter/Dimension | Cubic |
Test/Approvals
| Approvals | CE cULus CDRH 1 |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
Generical Data
| Dimensions | 11x31x19 mm |
| Operating Temperature | -25°C … 55°C |
| Mechanical Protection | IP67 |
