Technical Data
Nominal size MTA2 : 50 mm
MTA3 : 63 mm
Measurement ranges 0 … 60 to 0 … 600 mbar
and corresponding vacuum and compound
pressure ranges
Pressure limitation Steady : 75% of full scale value
Fluctuating : 65% of full scale value
Short time : 100% of full scale value
Accuracy Class 1.6 (according EN837-3)
Protection rating
(EN 60529)
IP 44 (Type B-F-G)
IP 33 (Type D)
Process connection Brass
Capsule Bronze / Brass
Case Stainless steel 1.4301 (AISI 304)
Bezel ring Stainless steel 1.4301 (AISI 304) (type G)
Movement Brass
Window Polycarbonate, snap-fitted into the case
Dial Aluminium, white
Pointer Aluminium, black
Temperature Ambient: -20…60°C
Medium: -20…60°C
Storage: -40…70°C
Thermal drift ± 0.4 % F.S. / 10 K (reference 20°C)
Zero adjustment ± 10 % of full scale value
Adjustment screw accessible on the front side
after removing of the window or the rubber plug
in the window (type G)

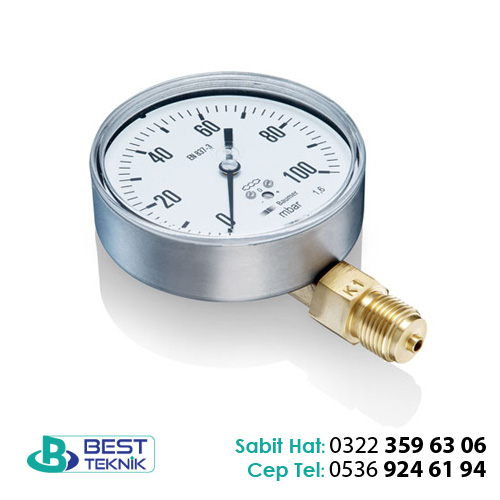

MTA3 Serisi Manometre
Main Features
Low pressure measurements
Class 1.6 according to EN 837-3
For clean and non corrosive gases
Applications
Laboratory & Medical
Machinery
