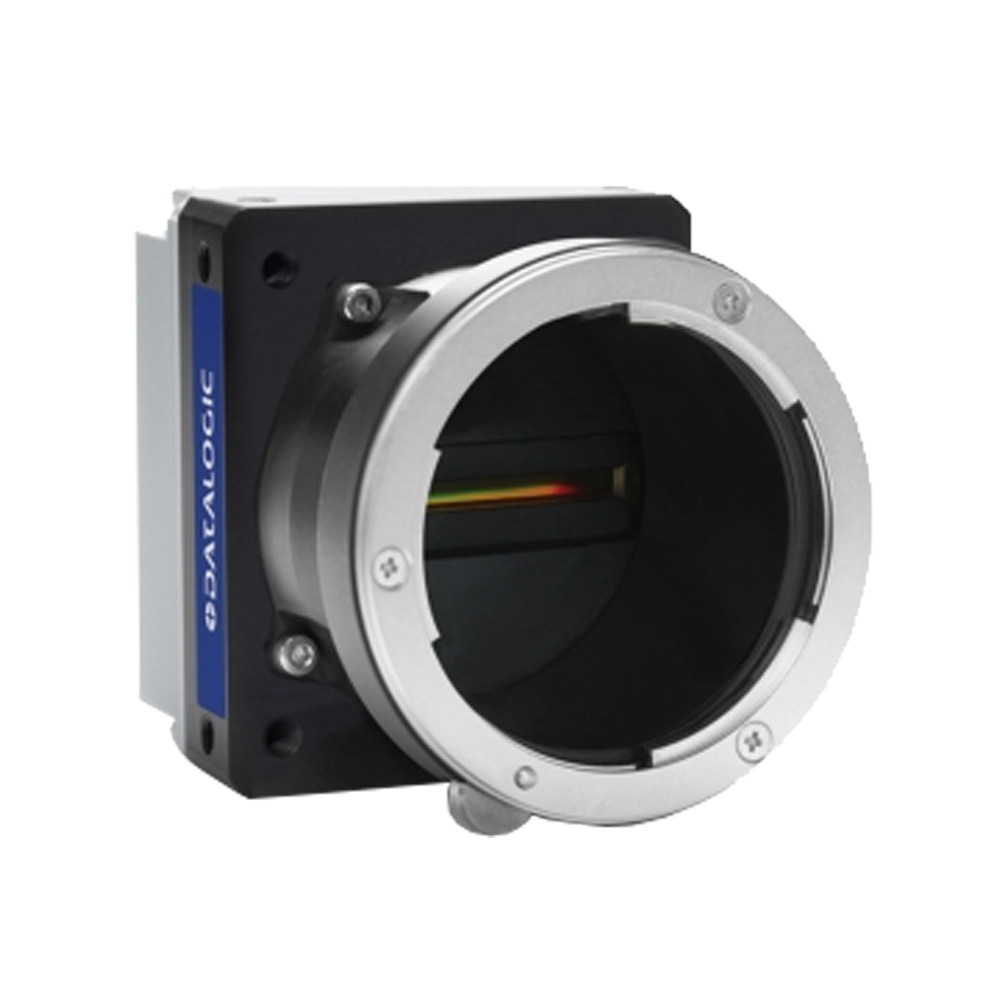

Overview
- Use with the MX-E45 and MX-E90 Industrial Vision Processors
- 2K to 8K resolution in grayscale
- High quality images sensors for speed performance
- Compact housing enables mounting in space-constrained locations
- High line rate ensures images capture at rates for high speed applications
Technical Features
Application
| Description | Camera unit |
Outputs
| Image frequency | 26 kHz |
Mechanical data
| Lens mount | F/M42-Mount |
Test/Approvals
| Approvals | CE |
Generical Data
| Camera Interface | Gig-E |
| Power Requirements | 12-24 VDC |
| Dimensions | 36 mm x 56 mm x 62 mm |
| Operating Temperature | 0 … 50°C |
| Mechanical Protection | IP30 |
| Resolution | 4096 |
| PoE | No |
| Pixel size | 7 µm |
Optical Data
| Mono/Color | Grayscale |
